7 Best Acoustic Bass Pickup Systems for Thumping Tone in 2026

If you have ever tried to play an acoustic bass in a room full of loud acoustic guitars or, heaven forbid, a drum kit, you know the struggle. You are back there, fingers bleeding, pulling the strings so hard your instrument is basically sobbing, and yet… nobody hears a thing. It is the classic “silent giant” problem. 🎸 To be heard, you need more than just a big wooden box; you need a high-quality acoustic bass pickup that actually captures the soul of your instrument without making it sound like a swarm of angry bees in a tin can. 🐝

✨Was this helpful? Spread the word! 🚀

I have spent more years than I care to admit tinkering with bridge saddles and soldering irons. I’ve learned the hard way that not every acoustic bass pickup is created equal. Some are brilliant, some are buzzy, and some are just plain weird. In 2026, the technology has reached a point where we can finally get that “woody,” organic thump through a PA system without the dreaded feedback squeal.

Whether you are looking for a dedicated acoustic bass guitar pickup for your high-end Breedlove or you are trying to convert a vintage find into a gigging machine with an acoustic electric bass pickup, this guide is for you. We are going to dive deep into the physics of low-end vibration and the gear that makes it happen.

Comparing the acoustic bass pickup to Alternatives

Before we get into the nitty-gritty of individual models, let’s look at how a dedicated internal pickup stacks up against other ways of getting your bass heard.

Quick Comparison: Top Rated Models for 2026

If you are in a rush to get to your gig, here is the “too long; didn’t read” version of the best options currently available.

Top 7 Acoustic Bass Pickup Systems: Expert Analysis 🧐

Choosing a pickup is a bit like choosing a spouse; you’re going to be spending a lot of time together, and if the chemistry is off, it’s going to be a noisy disaster. Here is my breakdown of the best acoustic bass pickup options on the market in 2026.

1. Fishman Matrix Infinity Mic Blend (Bass Version)

Fishman has been the gold standard for decades, and the Fishman Matrix Infinity Mic Blend is their flagship for a reason. This system combines an undersaddle piezo with a high-quality cardioid condenser microphone located inside the body.

• Technical Specifications:

  • Pickup Type: Undersaddle Piezo + Internal Mic.

  • Preamp: Endpin-mounted with soundhole controls.

  • Controls: Volume, Tone, and Mic Blend.

  • Power: 9V Battery (approx. 160 hours).

  • Special Feature: Switchable voicing for different body sizes.

• Customer Review Analysis: Users consistently praise the “air” that the microphone adds to the tone. While many piezo-only systems sound “quacky,” the blend control here allows you to dial in just enough microphone to make the bass feel alive. Some users noted that the installation is tricky and usually requires a professional luthier.

• Warranty: 1-Year Limited Warranty.

• Professional Applications: Ideal for touring pros who need a consistent sound across different venues.

• Pros:

  • Excellent feedback rejection with the piezo.

  • Natural harmonic content from the mic.

  • Discrete soundhole controls.

• Cons:

  • Requires a battery inside the bass.

  • Professional installation is highly recommended.

2. L.R. Baggs Element VTC for Bass

If you want something that just works every single time you plug it in, the L.R. Baggs Element VTC is your workhorse. It doesn’t have the bells and whistles of a dual-source system, but it handles the high-pressure vibrations of a bass string with incredible grace.

• Technical Specifications:

  • Pickup Type: Undersaddle Piezo (Flexible).

  • Preamp: All-discrete Class A endpin preamp.

  • Controls: Volume and Treble (VTC = Volume, Tone, Compression).

  • Power: 9V Battery.

  • Variation: Available in different widths for various bridge slots.

• Customer Review Analysis: Bassists love the “built-in” compression feel. Acoustic basses have huge dynamic peaks that can clip preamps; the L.R. Baggs Element VTC smooths those out automatically. One reviewer mentioned, “It’s the most ‘plug and play’ acoustic bass guitar pickup I’ve ever owned.”

• Warranty: 1-Year Limited.

• Professional Applications: Great for pit musicians and wedding band bassists.

• Pros:

  • Incredible dynamic range.

  • Simple, intuitive controls.

  • The compression circuit prevents harsh transients.

• Cons:

  • Can sound a bit “electric” if the tone isn’t dialed back.

3. K&K Sound Pure Bass

For the purists who hate batteries and want their bass to sound exactly like it does unplugged, the K&K Sound Pure Bass is the holy grail. It uses two large transducer heads that stick to the bridge plate inside the bass.

• Technical Specifications:

  • Pickup Type: Bridge plate transducer (Passive).

  • Connection: 1/4 inch endpin jack.

  • Impedance: High (Works best with a dedicated preamp).

  • Frequency Response: 20Hz to 18kHz.

• Customer Review Analysis: Feedback is overwhelmingly positive regarding the “woodiness.” Because it isn’t under the saddle, it doesn’t mess with the string-to-bridge contact. However, some users warned that it is more prone to feedback at very high volumes than a piezo.

• Warranty: 1-Year.

• Professional Applications: Bluegrass, folk, and jazz where “true” acoustic tone is paramount.

• Pros:

  • No battery required inside the instrument! ✅

  • Extremely lightweight and non-invasive.

  • Captures body percussion beautifully.

• Cons:

  • Needs an external preamp for the best results.

  • Feedback can be an issue on loud stages.

4. Shadow SH 064 (Nanoflex)

Shadow is a name you’ll often see as the “factory” acoustic electric bass pickup in many mid-range instruments. The Shadow SH 064 is their top-tier undersaddle replacement.

• Technical Specifications:

  • Pickup Type: Nanoflex (Senses both string and body vibration).

  • Preamp: Usually paired with a side-mounted Shadow preamp.

  • Shielding: 100% shielded for hum-free performance.

• Customer Review Analysis: Users appreciate the clarity. The Nanoflex technology is unique because it isn’t just a pressure sensor; it acts a bit like a flexible microphone. Some users found the wires to be a bit delicate during installation.

• Warranty: 2-Years (One of the best in the industry).

• Professional Applications: General purpose gigging.

• Pros:

  • Very low noise floor.

  • Excellent string balance.

• Cons:

  • Installation involves drilling if your bass isn’t already “electric.”

5. L.R. Baggs I-Beam Bass

Think of the L.R. Baggs I-Beam Bass as a high-fidelity microphone that you stick onto the bridge plate. It is a specialized acoustic bass pickup designed for recording-quality tone without the actual microphone stand.

• Technical Specifications:

  • Pickup Type: Bridge plate transducer (Active).

  • Weight: Less than 1/3 of an ounce.

  • Power: 9V battery.

• Customer Review Analysis: Many players use this in the studio. One customer stated, “It’s like having a Neumann mic inside my bass.” However, it is notoriously sensitive to feedback.

• Warranty: 1-Year.

• Professional Applications: Studio recording and quiet solo performances.

• Pros:

  • Stunning high-end detail.

  • Captures the “thump” of the fingers.

• Cons:

  • High feedback risk in loud bands.

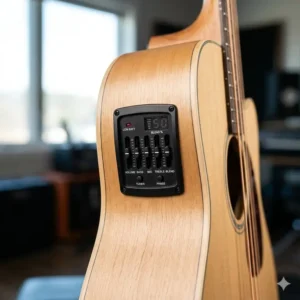

6. Fishman Presys+

The Fishman Presys+ is the classic side-mounted system. If you aren’t afraid to cut a hole in the side of your bass, this provides the most control you can get.

• Technical Specifications:

  • Pickup Type: Sonicore Piezo.

  • Controls: Bass, Middle, Treble, Notch Filter, Phase, Brilliance.

  • Tuner: Built-in LED tuner.

• Customer Review Analysis: Users love the convenience. Having a tuner and a 4-band EQ on the side of the bass is a game-changer for live performers. The downside is the heavy modification to the instrument.

• Warranty: 1-Year.

• Professional Applications: Weekend warriors who need everything in one spot.

• Pros:

  • Built-in tuner is very accurate.

  • Notch filter is a lifesaver for killing feedback.

• Cons:

  • Requires cutting a large hole in the guitar body. 😱

7. Schertler STAT-B (Acoustic Bass)

The Schertler STAT-B is a bit of an outlier. It’s an electrostatic bridge-mounted pickup that is often used for upright basses but has a specialized version for acoustic bass guitars.

• Technical Specifications:

  • Pickup Type: Electrostatic.

  • Preamp: Requires a STAT-PRE or similar phantom power source.

  • Mounting: Fits into the bridge wing or slot.

• Customer Review Analysis: It’s expensive, but users say the fidelity is unmatched. It doesn’t sound like a “pickup” at all; it sounds like the bass.

• Warranty: 2-Years.

• Professional Applications: Orchestral or high-end jazz ensembles.

• Pros:

  • World-class fidelity.

  • No piezo “quack” whatsoever.

• Cons:

  • Very expensive.

  • Complex setup.

✨ Don’t Miss These Exclusive Deals!

🔍 Take your acoustic bass performance to the next level with these carefully selected products. Click on any highlighted item to check current pricing and availability. These pickups will help you find that perfect low-end thump you’ve been searching for! ✨

💬 Just one click – help others make better buying decisions too!😊

Detailed Product Specifications Matrix

The Science of the Acoustic Bass Guitar Pickup: Why is Bass Different? 🧪

When you are looking for an acoustic bass guitar pickup, you can’t just buy a guitar pickup and hope for the best. The physics of a low E (or B) string are significantly different from a high E on a guitar.

According to research into acoustic resonance, the larger surface area of the acoustic bass body creates massive “standing waves” inside the chamber. This is why acoustic basses are so prone to feedback. A standard acoustic bass pickup must be able to ignore these swirling air currents while focusing strictly on the string vibration or the bridge plate movement.

Piezo vs. Magnetic vs. Microphone: The Great Debate

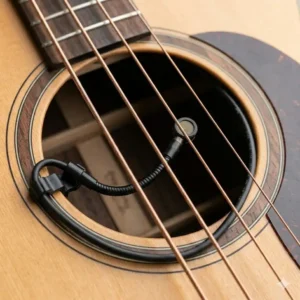

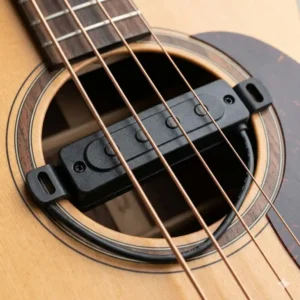

When people talk about an acoustic electric bass pickup, they are usually referring to one of three technologies. I’ve broken them down in the table below to help you decide which camp you belong to.

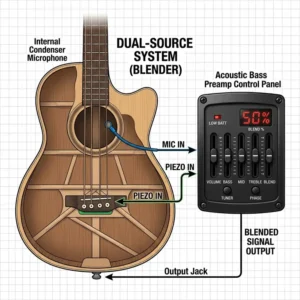

In 2026, most top-tier acoustic bass pickup systems are “Dual Source.” This means they combine a Piezo with a Microphone. You use the Piezo for your “meat and potatoes” volume and then blend in just a tiny bit of the Microphone to add that high-end shimmer and “air.” It is the best of both worlds.

Feature Matrix: Budget vs. Premium Options

Not everyone has $400 to drop on a pickup system. Let’s look at how the acoustic bass pickup market splits between budget-friendly and pro-level gear.

Why You Need a Dedicated Acoustic Electric Bass Pickup 🎸

I often get asked, “Can’t I just use a clip-on tuner/mic or a standard guitar pickup?” The answer is technically “yes,” but practically “no.” Here’s why a specific acoustic electric bass pickup is mandatory for any serious player.

1. Impedance Matching: Bass frequencies require specific impedance to prevent “tone suck.” A dedicated acoustic bass pickup preamp is tuned to ensure the low end stays fat and doesn’t disappear into the mix.

2. String Tension: Bass strings have significantly more tension and “excursion” (they move further) than guitar strings. A cheap piezo will often “quack” or distort under the sheer pressure of a heavy bass string.

3. The “Thump” Factor: Much of what we love about an acoustic bass is the percussive sound of the fingers hitting the string and the string hitting the frets. A specialized acoustic bass guitar pickup is designed to capture these transients without making them sound like ear-piercing clicks.

Performance Metrics: Feedback Resistance vs. Tone Quality

This is the ultimate trade-off in the world of the acoustic bass pickup. As you increase the “realism” of the tone, you usually decrease the feedback resistance.

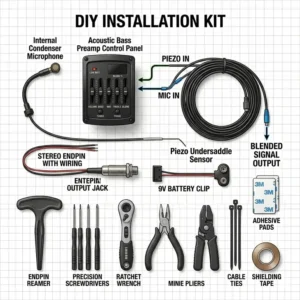

Installation Guide: Do It Yourself or Call a Pro? 🛠️

Installing an acoustic bass pickup can range from “peel and stick” to “I hope I don’t crack the bridge.”

The DIY Approach (Low Risk)

If you are using a bridge plate transducer like the K&K Sound Pure Bass, the installation is relatively simple. You use a specialized jig (included) and some high-strength super glue. The most stressful part is drilling out the endpin hole to fit the 1/4 inch jack. You’ll need a reamer tool for this—never use a standard drill bit, or you risk splintering the wood.

The Professional Approach (High Risk)

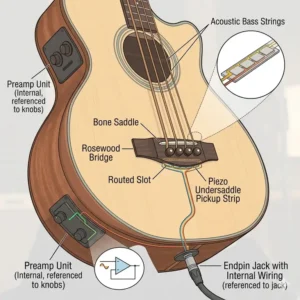

If you are installing an undersaddle acoustic bass guitar pickup, you have to drill a hole through the bridge slot and, more importantly, sand down the bottom of the saddle. If that saddle isn’t perfectly flat (down to the micrometer), your string balance will be ruined. One string will be twice as loud as the others. For the love of all that is holy, if you have a $2,000 bass, pay a luthier $75 to do this for you.

Cost Comparison: DIY vs. Pro Installation

Common Challenges with the Acoustic Bass Pickup (and how to fix them) 💡

Even the best acoustic bass pickup can run into issues. Here are the most common problems I’ve encountered in the field and the quick fixes you can use.

1. The Dreaded Feedback “Howl”

Acoustic basses love to howl at around 100Hz to 200Hz. This is the resonant frequency of the air inside the body.

• Fix: Use a “feedback buster” (that rubber plug that goes in the soundhole) or use a preamp with a Notch Filter. A notch filter is like a surgical EQ that cuts out just that one offending frequency.

2. Uneven String Volume

You plug in, and your A-string is deafening while your E-string is a whisper.

• Fix: This is almost always caused by an uneven bridge saddle. Remove the saddle and check the bottom with a straight-edge. Even a tiny piece of sawdust in the bridge slot can cause this.

3. “Quacky” Tone

The “quack” is that plastic, piezo-y sound that happens when you pluck the string hard.

• Fix: This is often a result of impedance mismatching. Using a dedicated Bass DI Box or an acoustic-specific preamp will help smooth out those harsh peaks.

Requirements Analysis for Different Players

✨ Ready to Upgrade Your Tone? 🚀

🔍 Take your performance to the next level with these carefully selected products. Click on any highlighted item to check current pricing and availability on Amazon. These pickups are the secret weapon for any serious bassist! 🎸✨

Conclusion: Finding Your Low-End Soul 🌟

Finding the right acoustic bass pickup is the final step in making your instrument truly stage-ready. Whether you opt for the bulletproof reliability of the L.R. Baggs Element VTC or the stunningly natural “woody” tone of the K&K Sound Pure Bass, the goal is the same: to let your playing be heard exactly as you intended.

In my experience, if you are playing in a variety of settings—from quiet coffee houses to loud outdoor festivals—a dual-source system like the Fishman Matrix Infinity Mic Blend is the safest and most professional investment you can make in 2026. It gives you the tools to fight feedback when you need to, and the fidelity to shine when the environment allows it.

Don’t settle for a thin, clicky sound. Your bass deserves to thump, growl, and sing. Grab a quality acoustic bass pickup, get it installed correctly, and finally step out of the shadows and into the mix.

Frequently Asked Questions❓
